Technical Specifications |
Network Standards |
IEEE802.3, IEEE802.3u, IEEE802.3x |
LED Indicator |
6 * Link/Act LED indicators, 1 * Power LED indicator |

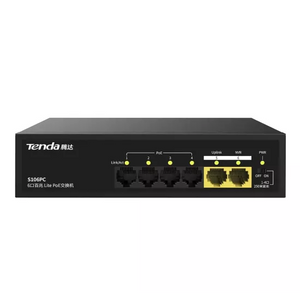

Interfaces |
4 * 10/100 Base-TX Ethernet Ports (Data/Power) 2 * 10/100 Base-TX Ethernet Port (Data) |
Transmission Media |
Recommended: CAT5/5e UTP or better |
Fan Quantity |
- |
Dimension |
175 mm x 127 mm x 43 mm (L x W x H) |
Level of Protection |
4kV |
Forwarding Mode |
Store-and-forward |
Switch Capacity |
1.2 Gbps |
Packet Forwarding Rate |
0.89 Mpps |
Buffer |
- |
MAC Address Table |
1K |
Jumbo Frame |
- |

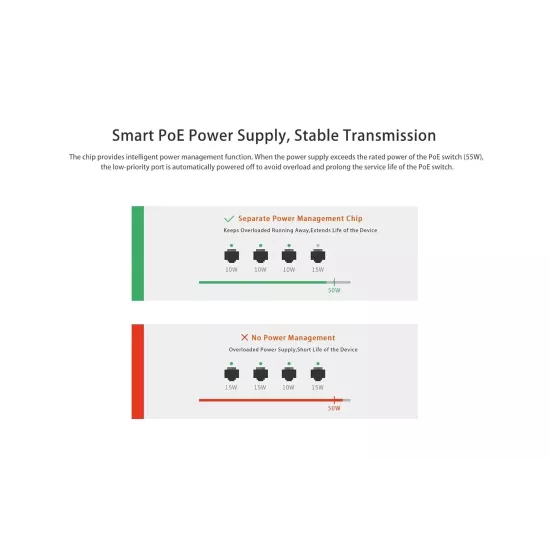

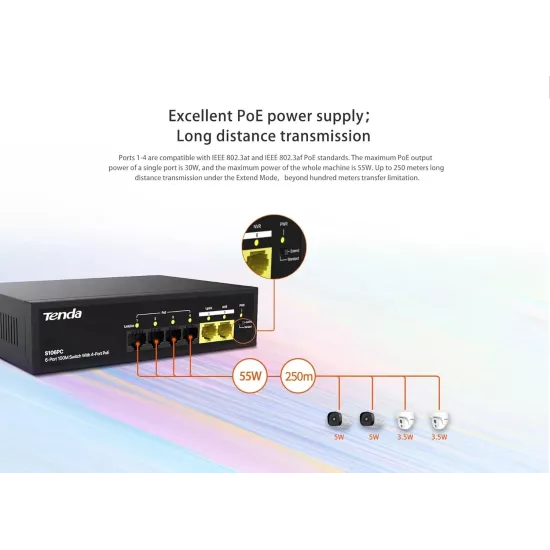

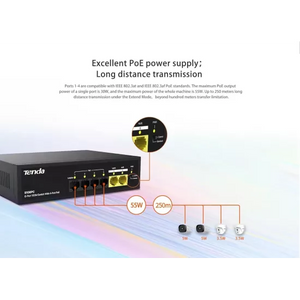

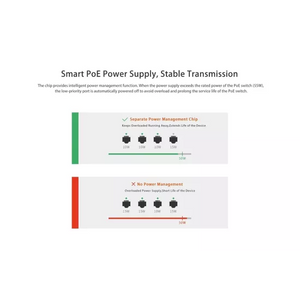

PoE Budget |
Compatible with IEEE802.3af/at Whole device: 55W |
Power Consumption |
- |
Input Voltage |
190 - 240V AC 50/60Hz |
Mounting |
Desktop mounting: support Wall mounting: support Rack mounting: Not support |
Environment |
Operating Temperature: 0°C - 40°C Storage Temperature: -40°C - 70°C Operating Humidity: 10% - 90%, non-condensing Storage Humidity: 5% - 90%, non-condensing |
